  • dormakaba E-Plex EP-STD-03-001

    Standard Software Implementation Kit

    SKU: EP-STD-03-001

    E-Plex



    Quantity left : 1

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $113.80

    Call For Price

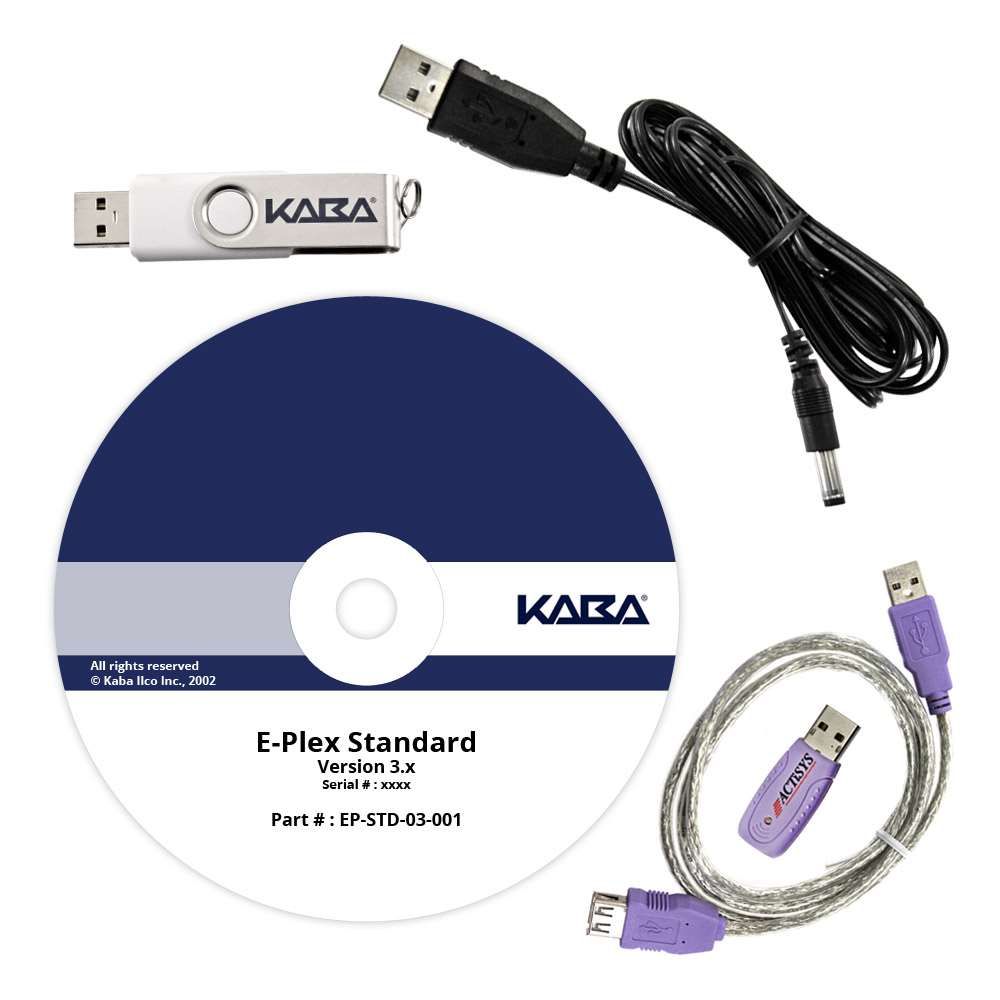

    Package Includes

    • Software Disc – Requires Microsoft Excel
    • Installation Instructions
    • M-Unit
    • IR Reader and Extension Cable
    • USB Cable to Program EPS2000

    Features

    • Includes the IrDA > USB adaptor and software to enable communication between a Windows based laptop or netbook PC and your E-Plex 1500/2000/3000/5000 locks
    • User-friendly interface with point and click control
    • On-screen instructions with a spreadsheet design that enables you to sort how you see fit
    • Manage up to 300 users per door
    • Manage up to 10,000 doors / multiple locations
    • Most recent 9,000 lock events are recorded in memory including use of the mechanical key override for audit trail reporting
    • Quickly add/delete users/doors
    • Built-in optional random PIN-code generator
    • Passwords safeguard data and system

    Technical Information

    • Compatible with Microsoft Windows 2000, XP Home & Pro, Vista, Windows 7, and Windows 8.  PC memory requirements:  128 MB (mega-bytes) or greater of RAM, 500 MB or greater of Hard Disk
    • PC/PDA running Excel 2003 or higher is required
    • PDA and Pocket PC Compatibility:  PDA’s running Palm Operating System 4.X or 5.X – Palm Centro, Tungsten E, Tungsten E2, Tungsten T3, T5, TX, Palm Zire, Palm Zire 21, Palm Zire 31, Palm Zire 71, Palm Zire 72, Palm M Series (130/500/505/515), Sony Clie Series (TJ/25/35/37).  Pocket PC’s running Windows Mobile OS 5.0 or higher – HP IPAQ Series, Dell Axim Series
    • Mobile phones running Windows OS (operating system) ‘and’ phone must have ‘beaming’ capability, i.e. infrared sensor

    GoKeyless™ is a factory trained and authorized Kaba E-Plex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    The E-Plex standard access control software implementation kit has everything you need for trouble-free PC programming of your new Kaba E-Plex locks.  The software features intuitive, graphic rich, easy-to-operate Microsoft Excel based software for managing doors, user rights, and creating authority levels.  It greatly simplifies your management tasks:  you can make your user access and authority level changes on your PC.  If you are using a desktop PC, you'll setup your lock configuration files on your desktop computer, then download the file to your M-Unit (laptop/netbook).  Next, you'll send the updates by infrared beam into the lock by positioning your PC close to the lock's sensor.  You can also do your programming on your laptop/netbook to begin with, and then plug the USB infrared data adapter into the laptop's USB port, which transforms your laptop/netbook into your maintenance M-Unit.  A complete audit trail reporting system is built-in to let you track down who was inside should anything ever come up missing, and to help with accountability. When you need to report on who's been entering and when, you can do so quickly by simply pointing your M-Unit at the lock's sensor to download the audit trail data.

    GoKeyless™ is a factory trained and authorized dormakaba E-Plex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Basic

    Manufacturer dormakaba USA Inc.
    Brand E-Plex

    Door requirements

    Security

    Users 300

    Dimensions
