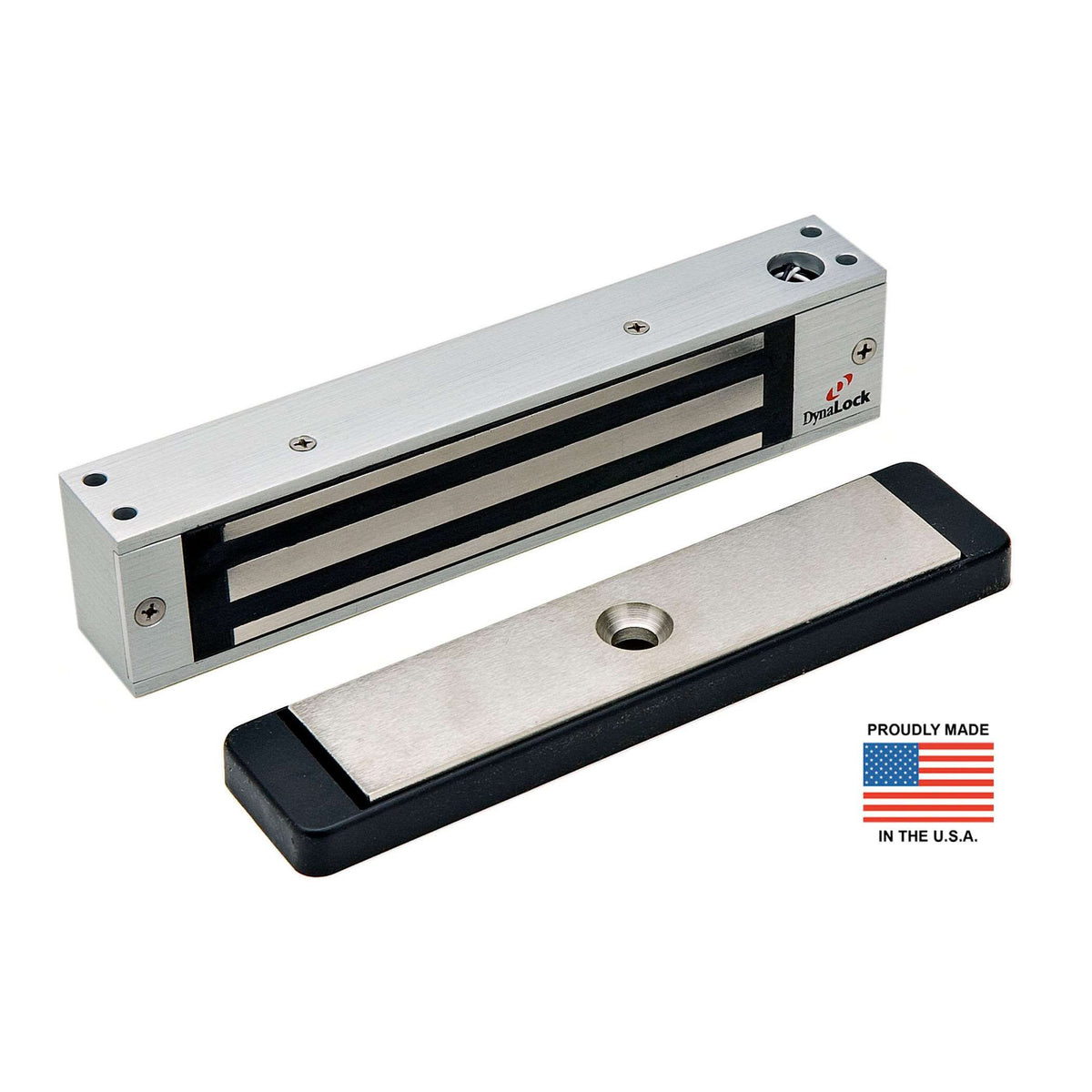

DynaLock 2585

Compact “Mini Mag” Lock Design Holding Force — 650 lbs. holding force provides for effective traffic control. Examples include interior office doors, clean room interlocks, tool cribs, and x-ray areas. Ideal for Low Security Applications Door Applications: Outswing Hollow metal, aluminum storefront glass, solid core, reinforced door (Need inswing lock?) Low Power Consumption: Conserves energy, reduces operating cost, and extends battery backup time. A Totally Plated Coil and Armature: Provides protection against corrosion. No Residual Magnetism — The lock releases without delay when de-energized. Narrow Backset; thin lock section (1-1/4″) may mean the elimination of additional mounting brackets. Built-In Spike Suppression — Protects other solid state components within the system from damage when the lock is de-energized. Multi-voltage field selectable 12/24 VDC/VAC Specs Current draw, 0.5 Amps @ 12VDC / 0.25 Amps @ 24VDC Lock Size: 1-1/4”D x 1-3/4”H x 8-1/2”L Armature Size: 3/8”D x 1-1/2”H x 6-1/2”L Warranty Lifetime Warranty — American Made in the USA by DynaLock, with over 20 years experience in the manufacturer of electromagnetic locks. MAG MODEL OPTIONS DSM Door Status Switch: Signals door closed or ajar Note: Check with your Local Authority Having Jurisdiction (LAHJ) before installation to review their policy on installing mag locks on your door.
