Discover dormkaba Saffire EVO + ButterflyMX – The Ultimate Access Solution for Multi-Family Properties!

Categories
  • Industry

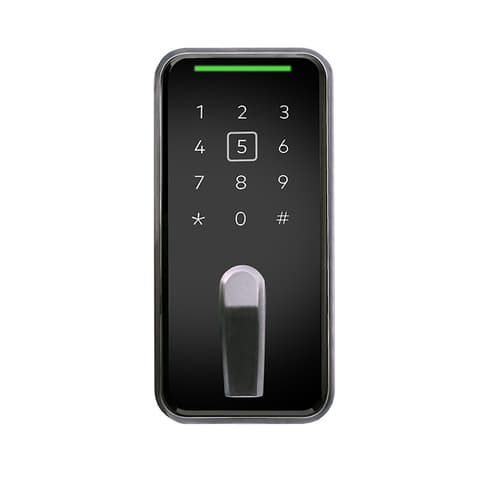

  • dormakaba Saffire EVO LZ-D

    Electronic deadbolt lockset with clutch mechanism and built-in Wi-Fi connectivity, RFID, Bluetooth and keypad.

    SKU: EDLW02-EECB-CB-0



    Call For Price Contact For Pricing

    Saffire EVO LZ-D Data Sheet

    Wi-Fi Network Minimum Requirements

    The EVO LZ series requires a 3rd party aggregator for integration with Lyazon, such as:
    ButterflyMX


    Special project pricing is available. Contact us today to take advantage of exclusive offers tailored to your business. Let us help you find the perfect solution for your needs.

    Applications

    • Ideal for new construction projects or when doors are being replaced
    • Simplified door preparation for ease of installation
    • Suitable for small to very large-scale properties
    • Access control for tenant rooms, common areas, and back-of-house
    • Ideal for multi-housing projects, including apartments, student housing and more

    Features

    • Get real-time notifications, including events and access anomalies

    • Manage access rights to allow or revoke access for residents and visitors in real-time, from anywhere

    • Easily send digital keys or PIN codes to residents and visitors from a mobile device• Allow residents to use their mobile device, RFID credentials or PIN to access their residence or common areas

    • Provide convenient one-time or recurring access PINs to service and maintenance personnel

    • Control when and where residents and visitors can go throughout the building

    • Quickly delete lost access media to keep the building secure.

    Security features

    • Online connectivity ensures continuous

    firmware updates for increased device

    security

    • BHMA A156.36 Grade 2

    • UL 10C 3-hour fire rating

    • Non-volatile memory maintains lock

    programming and audit records

    • Tamper-proof design

    • No need to visit the lock to update access

    The Saffire EVO LZ Series are cloud-connected locks that combine high performance with aesthetics that seamlessly integrate with building technology providers and amenities for multi-housing properties. The Saffire EVO LZ locks provide an easy-to-use, secure, and flexible solution with the benefits of real-time connectivity. They include the convenience of using either mobile devices, RFID credentials, or secure PINs for access to resident units, common areas, and perimeter doors.

    Basic

    Manufacturer dormakaba USA Inc.
    ANSI Rating ANSI/BHMA A156.36 Grade 2 with 1” deadbolt
    Battery Type 3 AA
    Lock Features Audit Trail, Auto Relocking, No Tour, Passage Mode
    Warranty 2 Years Mechanical & Electrical
    Access Type Keypad - Digits
    Smart Card/Fob
    Smartphone/App
    Locking Device Deadbolt
    Brand dormakaba Saffire

    Door requirements

    Door Handing Field handed
    Battery Life 13 months. Low-battery indicator to help with preventative maintenance. It is visible on the device and has an event notification in the system. Passive waring and notification
    Door Prep Deadbolt
    Environmental -31°F to 158°F (-35°C to 70°C), 0% to 90% non-condensing humidity at 86°F (30°C) meets IP54

    Security

    Credential Format dormakaba ComID high-security credentials 13.56MHz MIFARE DESFire EV2/EV3 ISO card or fob / mobile access credentials (BLE) / 6-digit PIN codes
    Credential Type Card, Fob, MIFARE
    Fire Rating BHMA A156.25; BHMA 156.36 Grade 2; Florida Building Code HVHZ & non-HVHZ
    Wireless Protocol Wi-Fi 2.4GHz IEEE, 802.11 b/g/n, WPA2, WPA, AES 128 and TLS 1.2, -70dB signal strength at the lock

    Dimensions

    Exterior Dimensions 6 (H) x 2.56 (W) x 3.50 (D) in.
    Door Thickness Minimum 1 3/8
    Door Thickness Maximum 2 1/8” (35mm to 54mm)
    Backset Adjustable - 2 3/4 in. & 2 3/8 in
    Certifications IC RSS-130/133/139/247, ADA, CAN/ULC-S104, FCC Part 15, Florida Building Code, UL 10C
    Exterior Dimensions 6 (H) x 2.56 (W) x 3.50 (D) in.
    Lock Dimensions 5.5 (H) x 2.63 (W) x 1.76 (D) in.
