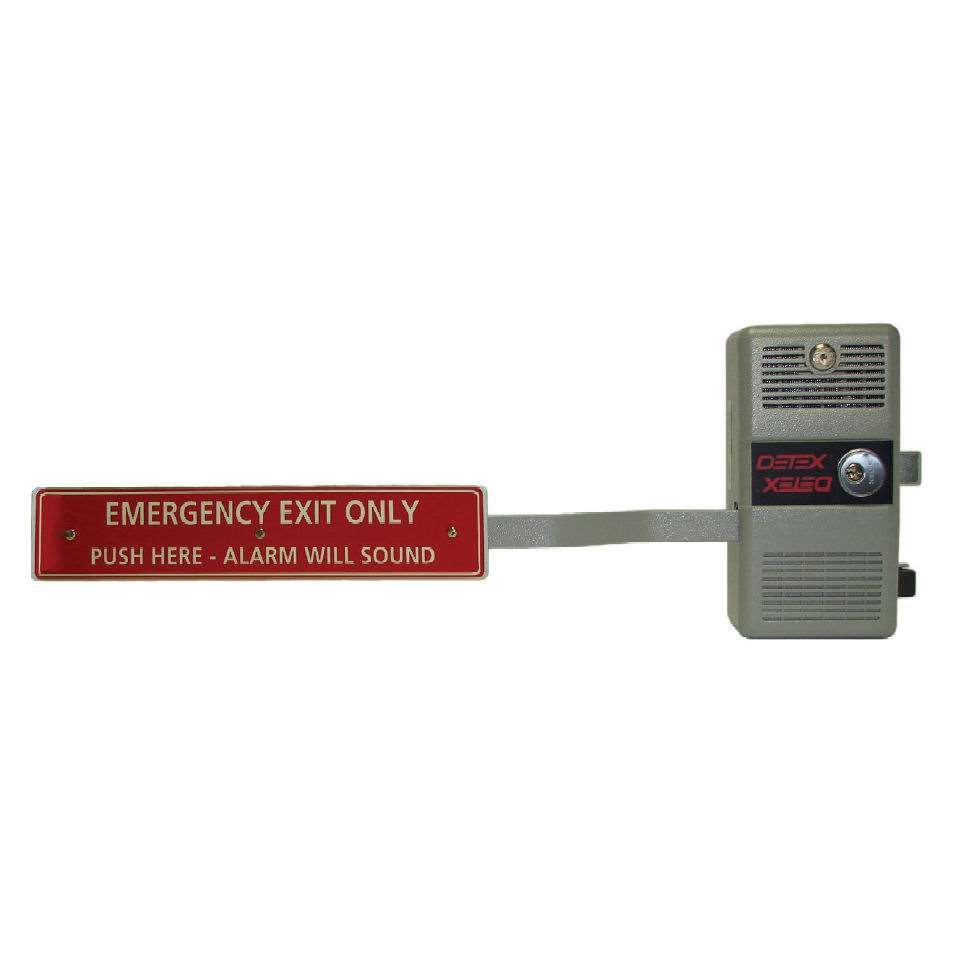

  • Detex ECL-600

    Fire Rated Relatching Alarmed Exit Device

    SKU: ECL-600

    Detex



    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $99.63

    Call For Price
    • 1″ throw dead bolt and 3/4″ dead locking latch bolt
    • Relatching for additional security
    • Saw resistant dead bolt
    • Corrosion resistant alloy lockbody
    • 100 decibel alarm, powered by 9-volt battery (included)
    • Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders
    • Durable steel plate with photo luminescent sign
    • Non-handed
    • Locking and unlocking the dead bolt always arms and disarms the alarm
    • Resetting the alarm can only be accomplished with a control key

    Benefits

    • Attack resistant design withstands over 2200 lbs. of outside pull force
    • Proven durability, reliability and long service life at a reasonable price
    • Reduces employee and customer theft
    • Easy to Install
    • Time tested construction resists attack from the inside
    • Easy to see if the lights go out
    • Straightforward operation that everyone understands

    Technical Information

    • Door Types – Wood, Hollow Metal or Aluminum
    • Door Thickness – Fits standard 1-3/4″ – 2-1/4″
    • Minimum standard door width for ECL-600 is 34″
    • Double Door systems available; contact us for a custom quote
    • Door Stile – Fits minimum 5-3/4″ with ECL-437K Strike (Std.)
    • Machine and Sheet Metal Screws (Std.). Optional sex nuts or security torx screws available

    Detex

    A common challenge faced by anyone in the restaurant or retail business is ensuring safety of employees in the event of an emergency, while simultaneously managing security at the building's exit doors. Unless you can station a cop at your secondary fire exits, you'll want to use the Detex ECL-600 alarmed and fire-rated exit control lock. With a 100dB alarm, any time there's an unauthorized exit, you and everyone in vicinity will know it. Whether it's an intoxicated customer at your lounge, or someone trying to lift a vacuum out the back door, the Detex ECL-600 won't stop sounding the alarm until you're ready to turn it off. Sure, it may just be an unintentional exit, in that case no big deal, you can quickly insert your key and stop the alarm. But if it's a crime, the ECL-600 will give you the notification you need to pursue the thief and call the police. Detex ECL-600 fire rated and code compliant paddle panic exit devices make managers, owners, the public, and employees feel safer. Should a fire ever break out and a primary exit is blocked, employees can simply push the paddle on the Detex ECL-600 to get out. With as reassuring as it is having such a rugged and dependable exit control lock on these doors, it's even more noteworthy to mention the ability of this device to re-latch. This ensures these doors won't be left unlocked at any time, even when there's an inadvertent exit.

    Basic

    Manufacturer Detex
    Battery Type 9V
    Warranty 10 Year Limited Manufacturer
    Brand Detex

    Door requirements

    Door Handing Non-Handed

    Security

    Dimensions

    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 2 1/4 in.
