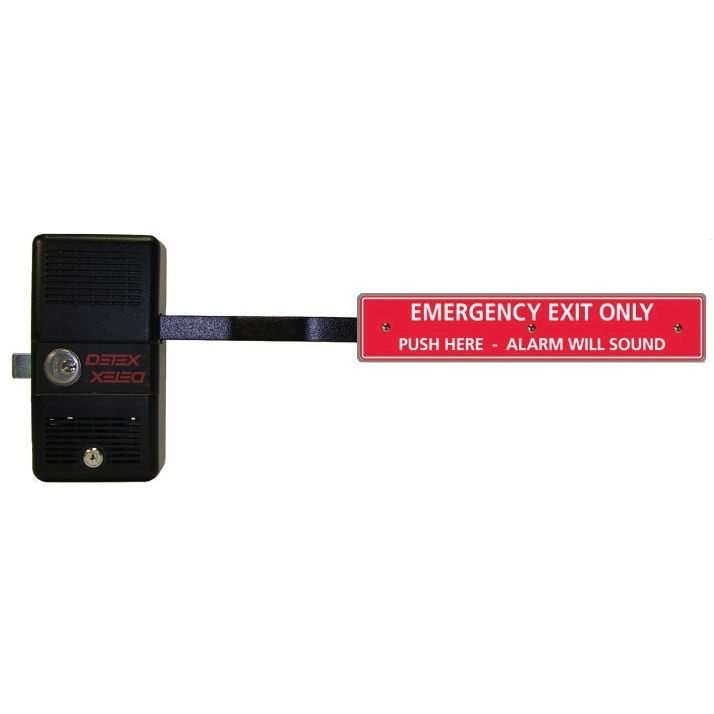

Detex ECL-230D-PH

• Single point, 1″ throw dead bolt
• Saw resistant dead bolt
• Corrosion resistant allow lock body
• 100 decibel alarm, powered by 9-volt battery (included)
• Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders
• Durable steel plate with photo luminescent sign absorbs light to then “glow in the dark” when lights are dimmed
• Non-handed
• Locking and unlocking the dead bolt always arms and disarms the alarm
• Resetting the alarm can only be accomplished with a control key

Benefits

• Attack resistant design withstands over 2200 lbs. of outside pull force
• Proven durability and reliability at a reasonable price
• Reduces employee and customer theft
• Notifies management and people nearby of an unauthorized exit
• Easy to install
• Time tested construction resists attack from the inside
• Easy to see if the lights go out
• Straightforward operation that everyone understands

Technical Information

• Door Types – Wood, Hollow Metal or Aluminum single doors
• Door Thickness – Fits standard 1-3/4″ – 2-1/4″
• Minimum standard door width for ECL-230D-PH is 34″
• Door Stile – Fits minimum 5-3/4″ with ECL-437K Strike (Std.)
• Machine and Sheet Metal Screws (Std.). Optional Sex Nuts or Security Torx Screws Available
