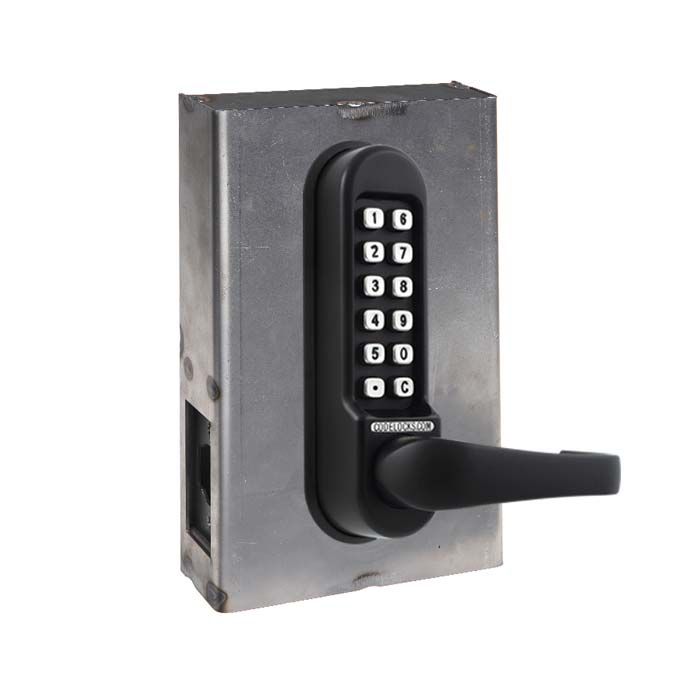

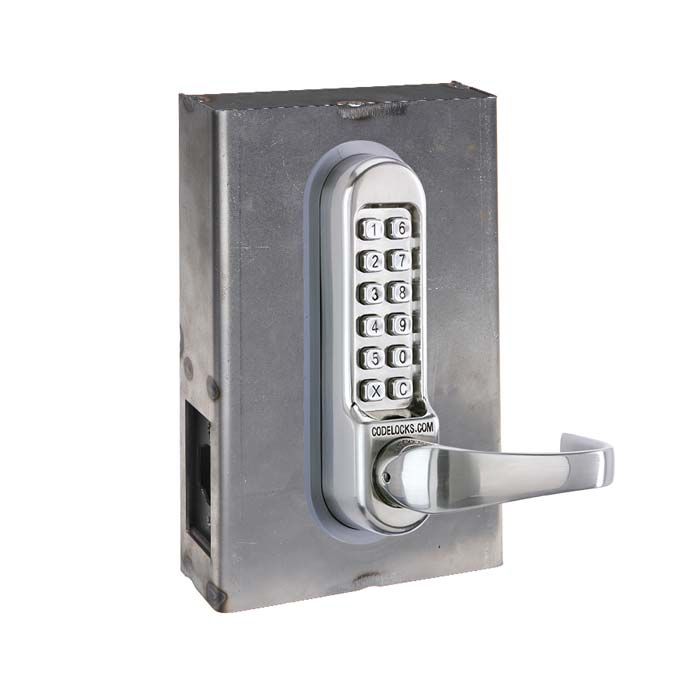

Codelocks CL510/CL515 Gate Kit

Name: Codelocks CL510/CL515 Gate Kit
Brand: GoKeyless
SKU: CL515 BK MG GBK
Price: 310.46 USD
Availability: InStock

Mechanical Keyless Lock and Gate Box

SKU: CL515 BK MG GBK

Codelocks

Toss the keys. The Codelocks CL510/CL515 Gate Kit provides convenient keyless access to fences and gates. This heavy duty lock features full size lever handles and coded or code free access methods to allow flexibility to users on managing entry. Suitable for use where lever operated locks are preferred.

$275.57 - $310.46

Features
Description
Specifications

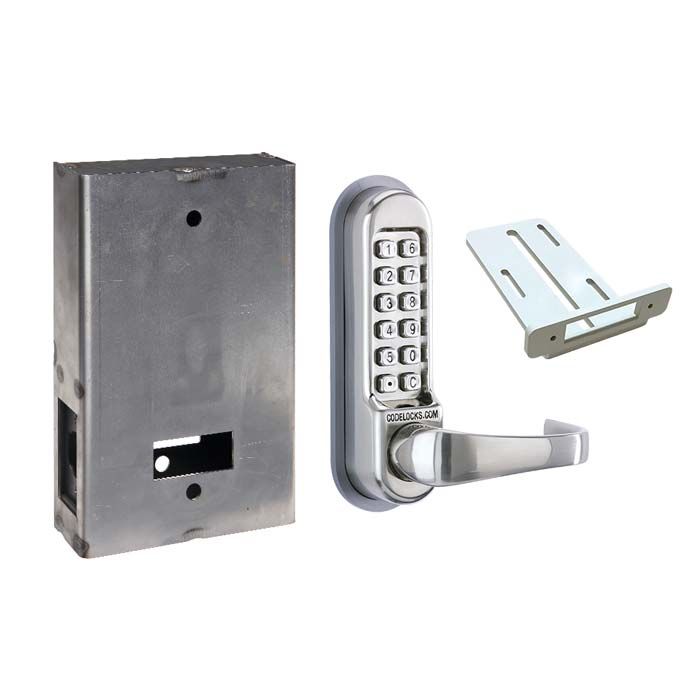

This kit includes (1) Codelocks CL515 or Codelocks CL510 Mechanical Tubular Latchbolt Lock, (1) 14-gauge steel weldable Gate Box, and (1) 16-gauge steel adjustable latch bracket

Codelocks CL510/CL515

Heavy duty tubular mortise latch – Light and Medium duty models available
12 stainless steel buttons
Lever handle lock for doors hung on the left or right
Full size lever handles with return to door
Tumbler alignment for easy code change
Large three coil lever return spring suitable for high traffic use
Code Free Access (Passage Mode) option – CL515 model ONLY
Code Change Method – Requires removal of the lock from the door
Stainless steel or Black marine grade finish, anti-bacterial coating also available on request
Easy to install
Suitable for interior and exterior use
Suitable for wooden/metal doors
Neoprene seals included
Limited lifetime warranty

Gate Box

Weldable steel gate box
Compatible with tubular latch locking devices
Dimensions: 8 1/2 (H) x 5 1/2 (W) x 1 3/4 (D) in.
Fits 2 3/4 in. backset

Applications

Offices
Schools
Warehouses
Hospitals
Care homes
Nurseries
Hotels
Leisure facilities
Home

If you need to secure a fence or gate, the Codelocks CL510/CL515 Gate Kit is for you. This heavy duty keyless lock features full size lever handles for easy entry and durable stainless steel buttons made to withstand daily use. By trading keys for codes, the CL510/CL515 allows low-risk access for users without worrying about keys getting lost or stolen. Guests can come and go as they please using the code free passage function (CL515 only) This is great for open business hours, corporate events and more! The CL510/CL515 secures pool gates, security gates, or other gates where lever operated locks are preferred.

*To change the code on the lock, the lock must be removed from the door and inner tumblers adjusted to the new desired configuration.

Basic

Manufacturer	Codelocks
ANSI Rating	Grade 1 (Best)
Finish	Jet Black Marine Grade, Stainless Steel
Lock Features Old	Auto Relocking, Passage Mode
Solution	Mechanical
Warranty	Manufacturer Limited Lifetime
Handle Type	Lever Handle Door Locks
Access Type	Keypad - Digits
Locking Device	Tubular Latch
Brand	Codelocks
Buttons	2 x 6

Door requirements

Door Handing	Non-Handed
Door Prep	Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in.

Security

Code Length	4 to 6 Digits
Code Capacity	1

Dimensions

Exterior Dimensions	7 (H) x 2.15 (W) x 1.25 (D) in.
Door Thickness Minimum	1 3/8 in.
Door Thickness Maximum	2 3/8 in.
Exterior Dimensions	7 (H) x 2.15 (W) x 1.25 (D) in.
