  • Codelocks CL5000PK

    Panic Access Trim

    SKU: CL5000PK BS

    Codelocks

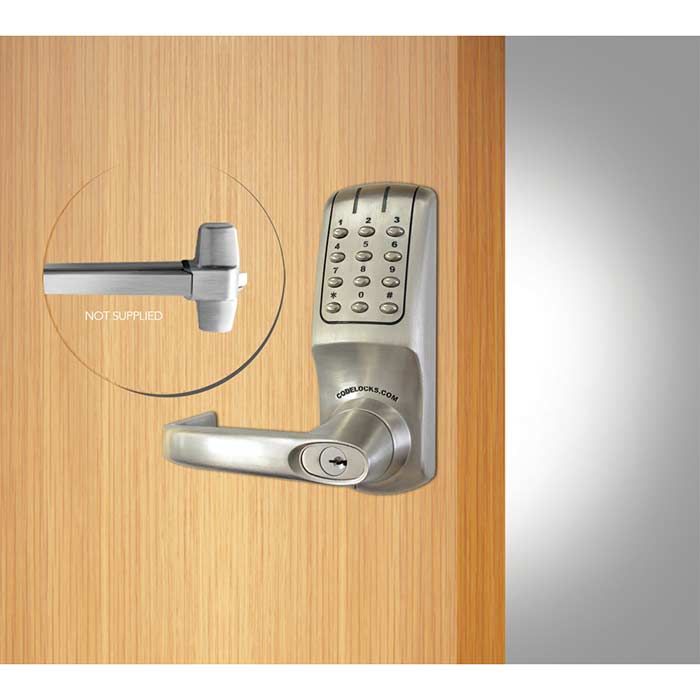

    Ultimate coded security. The Codelocks CL5000PK Panic Access Trim is a heavy duty exit trim that fits new or existing rim panic equipment with coded access. Featuring one-time user codes and remote release connections. Ideal for use in high traffic applications, especially in health, educational, commercial and residential environments.

    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $56.28

    Call For Price
    • Heavy duty exit trim – exit device sold separately
    • Fit with new or existing rim panic equipment
    • Key bypass and front cylinder change
    • Lever handle lock for doors hung on the left or right
    • Suitable for wood and metal doors
    • 4 to 6 digit user codes
    • 80 code capacity with up to 10 one time User Codes
    • Remote release connections
    • Up to 200,000 operations from 4 AA batteries (included)
    • Suitable for interior and exterior use
    • Locked and unlocked LED indicator option
    • On the door programming

    GoKeyless™ is an authorized Codelocks dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Give yourself the ultimate coded ingress or egress solution! The Codelocks CL5000PK Panic Access Trim is an electronic heavy-duty exit trim that fits new or existing rim panic equipment adding coded access to the door. Unlike other electronic locks, the CL5000 has a conventional 3×4 button keypad layout for instant familiarity, providing quick programming with multiple functions such as key override, passage mode, and more! With a capacity of up to 80 codes, you have enough codes for all your employees and up to 10 one time codes to use for visitors. Ideal for use in high traffic applications, especially in health, educational, commercial and residential environments. Lifting up on the handles operates the latchbolt when the correct 4, 5, or 6 digit code is entered and the blue light illuminates. The LED will show red for low battery and incorrect code entries. Whether it’s indoors or outdoors, the CL5000PK will perfectly secure your doors no matter where they are!

    Basic

    Manufacturer Codelocks
    ANSI Rating Grade 2 (Better)
    Battery Type 4 AA
    Lock Features Old Auto Relocking, Passage Mode, Temporary Codes
    Material Zinc Alloy
    Solution Electronic
    Warranty 2 Year Limited Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Exit - Rim
    Brand Codelocks

    Door requirements

    Door Handing Non-Handed
    Door Prep Standard 2 1/8 in. Cross-Bore, Through-Bolt Hole(s)

    Security

    Code Length 4 to 6 Digits
    Code Capacity 80

    Dimensions

    Exterior Dimensions 7 5/8 (H) x 2 3/4 (W) in.
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 2 3/8 in.
    Exterior Dimensions 7 5/8 (H) x 2 3/4 (W) in.
