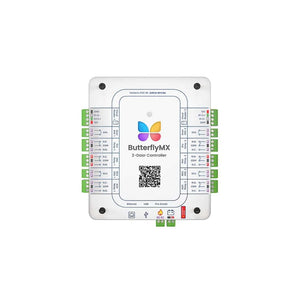

Butterfly MX Cloud-Based Access Controller

BUTTERFLYMX CLOUD-BASED ACCESS CONTROLLER

OPENS ANY DOOR OR GATE Works with all doors, gates, and elevators controlled by electric locking hardware.

EASY INSTALLATION Installs over any existing access control wiring and only requires an internet connection and power.

MULTIPLE ENTRY METHODS Opens doors and gates with a mobile app, fobs, keycards, and PIN codes.

REMOTE MANAGEMENT Manage credentials, review entry logs, and grant access from any smartphone or computer.

OFFLINE MODE Provides access even when the internet is down or the power goes out (if backup battery is installed)

CONNECTIONS

ButterflyMX reader port (2x)

Wet relay output: 12VDC, 1A max output (x2)

Dry relay output: rated up to 24VDC, 4A max (x2)

Door state sensor input: controller input is NC (x2)

REX input: controller input is NC (x2)

AUX output: dry relay output used in various custom configurations (x2)

Power input for included power supply

Ethernet port (RJ45)

Battery backup input

Fire relay input: controller input is NC

Removable screw-down terminal blocks Cloud-based access controller

Compatibility

Elevators: supporting both universal and floor-by-floor lockout methods (floor-by-floor powered by the ButterflyMX ECS)

Maglocks

Electric strikes

Electric push/crash bars

Gates/garage controllers

Features

Model – 2-door cloud-based access controller

Color – White

Power Supply – 12VDC, 60W

Network – Ethernet; wifi

Offline features – Onboard memory stores: Access logs, Unlimited code storage; unlimited fobs/cards storage

Inputs – ButterflyMX reader port (x2), ButterflyMX reader port (x2), Power input for included power supply, Ethernet port (RJ45), Battery backup input, Fire relay input

Outputs – Wet relay output (x2), Dry relay output (x2), AUX relay output (x2)

Backup battery – 12V connector with built-in charging circuit (not included)

Dimensions – 4.74” x 5.87” x 1.28

Certifications – FCC; IEC 62599; UL 294; UL 62368; CAN/ULC 60839

Warranty – 2 Years
