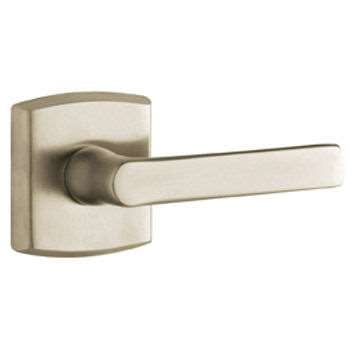

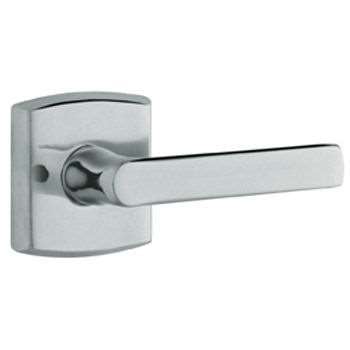

Baldwin Soho 5485V
Passage Lever Set
SKU: 5485V150PASS
Baldwin
$182.08
- 5485V Soho Lever, with Soho Rose
- Solid forged brass
- Finished and polished by hand
- Upon request, lock can be certified by Underwriters Laboratories (UL) for use on fire doors up to three-hour rating
- Backset Size: 2-3/8" (2-3/4" backset is available by special request)
The 'benz' of residential door hardware, Baldwin levers are a sophisticated, high-performance lock. Impeccably crafted, the Baldwin Soho 5485V passage lever set blends beautifully as a lower grip handle below your new Baldwin keyless entry system, and is also ideal for your hallway and closet doors. Comes with interior and exterior levers, and a non-locking tubular latch to hold the door in the closed position.
GoKeyless™ is a trained and authorized Baldwin® dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.
Basic
| Manufacturer | Baldwin |
|---|---|
| Warranty | Lifetime Mechanical, Limited Lifetime Finish |
| Function | Passage |
| Handle Type | Lever Handle Door Locks |
| Locking Device | Cylindrical Latch |
| Brand | Baldwin |
Door requirements
| Door Handing | Universal |
|---|---|
| Door Prep | Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in. |
Security
Dimensions
| Exterior Dimensions | 2.92 (H) x 2.78 (W) x 2.05 (D) in., Lever: 4.36 (W) in. |
|---|---|
| Inside Dimensions | ["2.92 (H) x 2.78 (W) x 2.05 (D) in.","Lever: 4.36 (W) in."] |
| Door Thickness Minimum | 1 3/4 in. |
| Door Thickness Maximum | 2 in. |
| Backset | 2 3/8 in. |
| Exterior Dimensions | 2.92 (H) x 2.78 (W) x 2.05 (D) in., Lever: 4.36 (W) in. |
| Weight | 3 lbs |
