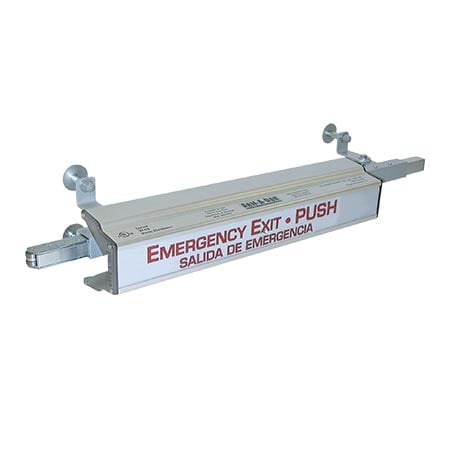

Arm-A-Dor A101-001

Great for chain stores, post offices, government facilities, warehouses, retail, restaurants, and more!

• 24 hour security that prevents door from being peeled open
• Safeguards against intruders, internal shrinkage
• Withstands tortuous retail and commercial environments for exiting
• Touchbar operates with straight push-through motion
• Roller design deadbolt means reduced friction and wear
• Waterproof - spraying your rear door clean won't affect it
• Automatically locks when door closes
• No special door preparation
• Fits virtually all doors and frames
• Fast installation! Six (6) step by step process. Arm-A-Dor is pre-assembled and surface mounts quickly
• Positioning template provided for precise install
• Door widths: 3' (feet) ~ 4' (feet) (for 3' doors, bar can be cut down in the field)
• Door jambs: Up to 6 3/4" wide
• Code Compliance: UL (Underwriters Laboratory) 305; NFPA 101 Life Safety Code; ANSI 156.3
• 5 (five) year limited manufacturer warranty

More Info - PDF

Forced entry attacks are your company's arch enemy.  It's time to get aggressive in the fight against back door break-ins. Arm-A-Dor panic hardware gives you protection against forced entry comparable to a drop-bar while still providing a quick way out for employees and customers. Rugged Arm-A-Dor panic hardware is made with 12-gauge telescopic steel tubing to withstand attacks and the abuse of countless openings and closings. And it meets the UL 305 and 10B standards for panic and fire exit hardware and the NFPA 101 Life Safety Code enforced by fire marshals and building inspectors.

What is the PRECISION Arm-A-Dor?
Arm-A-Dor is a heavy-duty grade 1 exit device encompassing two-point solid steel deadbolt latching. Arm-A-Dor is an exit only device designed to provide maximum security from forced entry attacks, alarmed egress to prevent internal shrinkage and enhanced durability for the most demanding environments.

Who is the Arm-A-Dor customer?
Arm-A-Dor is ideal for rear entry applications in retail, restaurant, and hospitality facilities.

What device types is Arm-A-Dor offered in?
Arm-A-Dor is available to order with or without an alarm and for fire-rated and non-fire-rated door applications.

Are there electrified options available for Arm-A-Dor?
There are 3 electrified options available to order on Arm-A-Dor which includes an alarm, a request to exit switch, and an A/C adapter kit.

What door thickness range can Arm-A-Dor accommodate?
Arm-A-Dor is standard to fit 1-3/4in – 2-1/4in thick doors.

What door width range can Arm-A-Dor accommodate?
Arm-A-Dor can accommodate 3ft – 4ft wide doors.

What door jamb range can Arm-A-Dor accommodate?
Depending on model and kits used, Arm-A-Dor can accommodate 5-3/4 in – 12-3/4 in door jambs.

What exit trims are available to order for Arm-A-Dor?
There are no exit trims available to order with Arm-A-Dor. The primary purpose of this device is to prevent entry from the exterior.

How hard is it to install an Arm-A-Dor device?
Arm-A-Dor is simple to install as it is non-handed and mounts to the door via four thru-bolts.

What keyways are available to order on Arm-A-Dor?
All alarmed Arm-A-Dor models require a mortise cylinder with a straight cam. These cylinders are not included and must be ordered separately.

What is the lead time for Arm-A-Dor?
The average lead time for Arm-A-Dor is less than 2 weeks.

What warranty does Arm-A-Dor have?
Arm-A-Dor has a 5-year mechanical warranty and a 1-year electrical warranty.
