Trilogy ETDL27

Name: Trilogy ETDL27
Brand: GoKeyless
SKU: ETDL27S1G/26DC50
Price: 570.12 USD
Availability: InStock

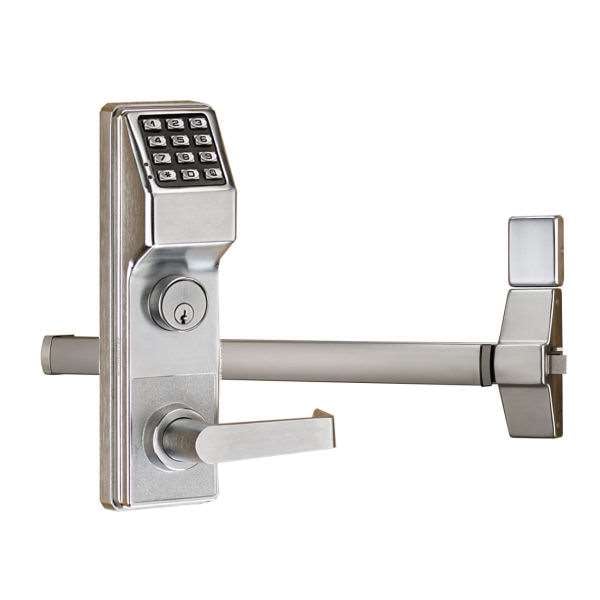

Keypad Access Lock For Panic Bars

SKU: ETDL27S1G/26DC50

Alarm Lock Trilogy

Panic bar/exit device sold separately.

The Trilogy T2 pairs with leading panic bars to secure perimeter exit doors and interior doors with push-bars to prevent theft of removable data end points because a door was left open or key was compromised. A lock for life, Trilogy addresses the problems with keys, reduces key costs and associated distribution hassles, and makes traditional access control seem so old-school.

Panic bar/exit device sold separately.

$570.12 - $598.63

Features
Description
Specifications

Heavy Duty, BHMA Grade 1 Keyless Exit Trim
Exit Device Compatibility: Von Duprin 99, Corbin ED5000, Yale 7100, Dorma 9300, Sargent 8800, Marks M9900, and American Eagle 6200 bars. Arrow 3800 model may be custom ordered, please call as this model only is a 16 to 18 week lead time. When ordering please select your existing panic bar model so that we may ship you the correct, compatible ETDL lock. Otherwise, if your current bar is not listed, we sell a number of brand-name push bars that you can add to your order at checkout.
Full size ADA lever
Fingertip Programming at all metal, 12 button keypad
Weatherproof durability
Rugged clutch mechanism insures long life & performance
Accommodates 100 Users with 3-6 digit PIN codes, including: Master, 10 Manager codes, 90 User codes, and 3 Service codes
Auto-locking, but may be programmed to passage mode
New! Remote Release Kit for ‘Buzz-In’
Easy to install. Retrofits to panic bars of most major manufacturers
Battery housing mounts above panic bar on interior side of door
Key override – uses a standard rim cylinder (provided by manufacturer) to operate key override function. All rim cylinders are interchangeable. When you want to use a name brand rim cylinder (your own, or you can buy one from us) in the lock, then you will need to purchase a matching cylinder adapter kit for that brand
Battery Operation: 5 AA’s; low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup
2-year manufacturer warranty

Specifically designed for retro-fitting doors with panic touch bars, the new T2 Trilogy exit provides safe and reliable electronic pushbutton access without the need to issue or track keys. With an included tail-piece, the lock comes ready to connect to your rim exit device. The Trilogy T2 in cylindrical configuration has been the most popular electronic lock on American’s commercial doors at schools, retail stores, airports, offices, and hospitals for 20+ years. The expansion to mortise and exit models now allows you to scale this technology to more doors for dependable keyless security. Each lock is weatherproof for use inside and out, includes a standard rim cylinder, and features fingertip access and programming flexibility.

Need this lock with Audit Trail? Check out Trilogy ETDL

Basic

Manufacturer	Alarm Lock
Battery Type	AA
BHMA Rating	Grade 1 (Best)
Finish	Satin Chrome
Keyway	Schlage C
Lock Features Old	Passage Mode
Solution	Electronic
Warranty	2 Year Manufacturer
Handle Type	Lever Handle Door Locks
Access Type	Key Keypad - Digits
Locking Device	Panic/Exit Exit - Rim
Brand	Alarm Lock Trilogy

Door requirements

Door Handing	Universal
Battery Life	120,000 Cycles

Security

Code Length	3 to 6 Digits
Code Capacity	100

Dimensions

Door Thickness Minimum	1 3/8 in.
Door Thickness Maximum	1 7/8 in.
Dimensions	11 (H) x 3 (W) x 2 3/4 (D) in.
Door Stile Width	Minimum 5 in.
Weight	10 lbs

TECH SUPPORT FOR ALARM LOCK TRILOGY PRODUCTS*
*Basic email support only. Additional support time available for a fee.

You are not comparing apples to apples when shopping for Trilogy locks online.

GoKeyless is a full service company and backs up its sales support with product and technical support.

What good is the lock to you when you have to spend countless hours trying to find the answer to something when you could have just contacted the experts.

In addition to answering technical questions for you — troubleshooting only, does not include training, or programming — our agents are also available for paid training on importing your users, communicating with the lock, establishing your mission critical access schedules, navigating the software, and utilizing all of the features and functions of your new access control system.

Our virtual support fees start at $70/hour or can be purchased as an annual tiered service.

Technical Support Hours: M-F 9am-5pm EST
