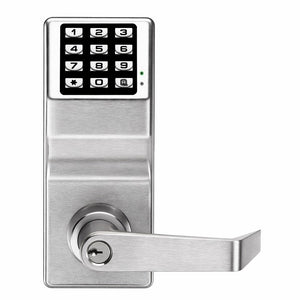

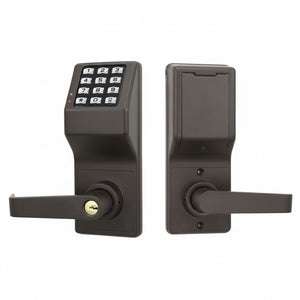

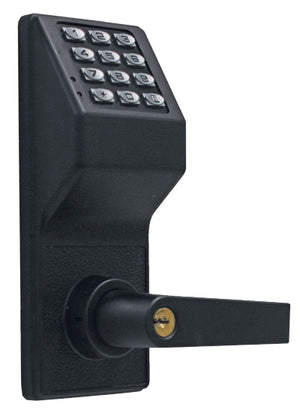

Trilogy T2 DL2700, DL2700WP
Digital Commercial Keypad Lock
SKU: DL2700/26D
Alarm Lock Trilogy
$430.88 - $700.45$524.03 - $721.66
Alarm Lock’s most popular commercial push-button lockset installed in schools, retail stores, airports, offices, and hospitals. Wire-free, and vandal proof, the auto-locking Trilogy DL2700 keyless access system is available in indoor and also weatherproof DL2700WP outdoor models. This Trilogy electronic lock accommodates up to 100 users and features an all metal keypad with a 12 button operational interface. Paying for re-keying, lockouts, and new keys all adds up. With more capability and more convenience, a Trilogy keyless lock improves your security and your bottom line.
Basic
| Manufacturer | Alarm Lock |
|---|---|
| Battery Type | AA |
| BHMA Rating | Grade 1 (Best) |
| Keyway | Schlage C |
| Lock Features Old | Passage Mode |
| Solution | Electronic |
| Warranty | 2 Year Manufacturer |
| Handle Type | Lever Handle Door Locks |
| Access Type | Key Keypad - Digits |
| Locking Device | Cylindrical Latch |
| Brand | Alarm Lock Trilogy |
Door requirements
| Door Handing | Non-Handed |
|---|---|
| Battery Life | 120,000 Cycles |
| Door Prep | Standard 2 1/8 in. Cross-Bore, Through-Bolt Hole(s) |
Security
| Code Length | 3 to 6 Digits |
|---|---|
| Code Capacity | 100 |
Dimensions
| Exterior Dimensions | 8 (H) x 3 1/4 (W) x 1 7/8 (D) in. |
|---|---|
| Inside Dimensions | ["8 1/4 (H) x 3 1/4 (W) x 1 11/16 (D) in."] |
| Door Thickness Minimum | 1 5/8 in. |
| Door Thickness Maximum | 1 7/8 in. |
| Backset | 2 3/4 in. |
| Door Stile Width | Minimum 4 1/2 in. |
| Exterior Dimensions | 8 (H) x 3 1/4 (W) x 1 7/8 (D) in. |
| Weight | 7.5 lbs |
