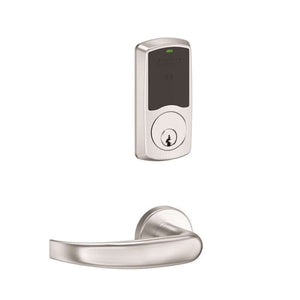

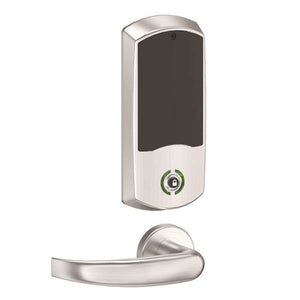

Schlage LEBMB-GRW

Name: Schlage LEBMB-GRW
Brand: GoKeyless
SKU: LEBMB-GRW-P-07-626-00A-RH-10-136-134-S123
Price: 1061.72 USD
Availability: InStock

Mobile Enabled Mortise Privacy Lock with ENGAGE

SKU: LEBMB-GRW-P-07-626-00A-RH-10-136-134-S123

Schlage and Schlage ENGAGE Locks Products

Discover the added protection of antimicrobial finishes for this product! For more information and assistance with placing an order, please don't hesitate to give us a call. Our team is ready to help you find the perfect solution.

Connect directly to smart phones and tablets for wireless setup and configuration! Ideal for commercial, education and multifamily applications. With your smartphone and the new Schlage Mobile Access Credentials you can extend your electronic access control affordably, without keys or wires!

$1,251.00 $1,061.72 SAVE 15%

Features
Description
Specifications

NEW – Bluetooth Mobile Access

LEBMB Mobile enabled mortise with interior push button – standard and deadbolt models also available
New LEB option is ready for the future with the ability to read Bluetooth and NFC mobile credentials
Compatible with new Schlage Mobile Access Credentials (see tab for more details)
Supports Mobile Student IDs in Apple Wallet (LE and LEB)
Quick response from smart device to mobile enabled lock or reader
Unlock an opening from up to 30 feet away
Best-in-class asymmetric credential encryption
Anti-theft biometrics using the phone’s fingerprint or facial recognition features
Works without internet connection or cellular service at the opening

Already have a LE Series lock but are looking to upgrade to Bluetooth mobile access? New retrofit upgrade kits are available! Please call for details.

Schlage LE Series

Designed to be easy to install, connect, manage, and use
Available with indicator, interior push button, or deadbolt for storeroom, privacy, apartment, and office applications
Built-in Wi-Fi® enables automatic daily updates (once every 24 hrs) sent directly from host software
Built-in Bluetooth® enables wireless configuration from smart phones and tablets
Networked real-time communication available with the ENGAGE Gateway and PACS provider solutions
Weather resistant design for use on perimeter doors
Suites with mechanical L Series with 31 levers and two knobs
Compatible with most proximity, Schlage fobs, Schlage smart cards
Works with same credential used on the building perimeter; smart credentials can be used for vending and other applications
Innovative door position sensor built right into the lock and strike-plate
Battery Operation: Up to 2 years of battery life on 4 AA (included)
Manage from ENGAGE website or Free ENGAGE app available on iTunes and Google Play
Greenwich Trim sectional style and rose with Sparta lever design
ANSI/BHMA: Grade 1
Mortise mounting style with Armor front and LED indicator. Also available in cylindrical mounting style
Built on proven Schlage L Series, Grade 1 mechanical lock
Fits existing mechanical mortise preps with no wires with only minor modifications
Standard Strike: 1-1/4″ x 4-7/8″ square corner, 1-3/16″ lip with box and DPS. Additional strikes, lip lengths and ANSI strike box available upon request
Standard Key Override: Schlage 6-pin Everest 29 S123 keyway mortise cylinder with two patented keys. Additional keying options available, including standard and interchangeable cores, competitor brands, master keying and grand master keying

App Features

Add and configure devices
Add new users and enroll credentials
View audits and alerts by door
User schedules, device schedules, including auto-unlock and auto-lock times (30 min. increments), and holiday time zone capability
Perform lock diagnostics
Send updates to devices anytime via Bluetooth at the lock, or from the Allegion cloud server via WiFi once every 24 hrs.
Requirements: iOS 7.1 or later. Android 4.4 (Kit Kat) or later

Notes

Compatible with any Android or iOS that supports native NFC technology. This includes the iPhone 6 and newer, Galaxy S3 and newer.

Product FAQ

This page is for the stocked model. We accept custom orders! To see the options, download the Ordering Guide, then contact us for a quote.

The new Schlage LE Series wireless lock with ENGAGE technology is designed to be easy to install, connect, manage and use. Developed specifically for facilities that want to upgrade to electronic or Schlage Mobile Access credentials for improved security and efficiency, it is ideal for interior office doors, common area doors and sensitive storage spaces with a cylindrical door prep.

LE Series wireless mortise locks simplify installation by combining the lock, credential reader, door position sensor and request-to-exit switch all in one unit. LE wireless locks utilize the standard mechanical lock mortise door prep and can be installed in 30 minutes or less with only minor modifications.

The new Schlage Mobile Access Credentials enable residents or staff members to utilize a mobile device instead of a physical badge to securely unlock an opening. Available for iOS and Android phones, the Schlage Mobile Access Credential app is convenient and easy to use. Simply select a specific door listed on the app. Once access is granted, the encrypted unlock signal will be sent from the smart device to the mobile enabled lock or reader.

ENGAGE cloud-based web and mobile apps make it easy to configure lock settings, add users, create user time zones and lock schedules, and view audits and alerts from anywhere. For advanced wireless capabilities and increased user and schedule capacity, LE Series wireless locks can be managed with software from Schlage’s access control alliance partners. LE Series wireless locks can be updated manually at the lock with the ENGAGE mobile app, automatically daily over WiFi or in real time when connected to an alliance partner gateway.

LE Series wireless locks with ENGAGE technology are compatible with most proximity, Schlage fobs, and Schlage smart cards.

Basic

Manufacturer	Allegion
ANSI Rating	Grade 1 (Best)
Battery Type	AA
BHMA Rating	Grade 1 (Best)
Finish	Satin Chrome
Lock Features	Audit Trail, Bluetooth, No Tour, Passage Mode, Privacy, Remote Control
Solution	Electronic
Warranty	1 Year Manufacturer
Function	Apartment Lockdown Office Privacy
Handle Type	Lever Handle Door Locks
Access Type	Key Proximity Card/Fob Smart Card/Fob Smartphone/App
Locking Device	Mortise
Brand	Schlage Schlage ENGAGE Locks Products

Door requirements

Door Handing	Reversible
Battery Life	2 Years
Battery Temperature Range	32° to 120°F (0° to 49°C)
Door Prep	Mortise, Through-Bolt Hole(s)
Lever Design	Sparta

Security

Scanning Time	≤ 1 sec.
Users	5,000
Wireless Protocol	Bluetooth BLE, IEEE 802.11b/g, WiFi
Wireless Range	100 ft.

Dimensions

Exterior Dimensions	8.181 (H) x 2.125 (W) x 2.903 (D) in.
Inside Dimensions	["9.658 (H) x 3.00 (W) x 2.498 (D) in."]
Door Thickness Minimum	1 3/4 in.
Backset	2 3/4 in.
Door Stile Width	Minimum 5 in.
Exterior Dimensions	8.181 (H) x 2.125 (W) x 2.903 (D) in.
Weight	10 lbs
