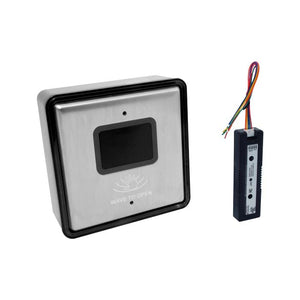

RCI 912-WBT

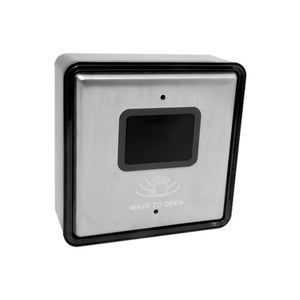

• Double-Gang Touch-Free Actuator – Narrow stile and Glass models available
• Infrared Motion Detection Technology
• Touch Free Activation with hand or reflective object provides clean and hygienic activation (less than 130 ms)
• Silent activation for hospitals and other noise-sensitive environments
• 2.4Ghz transmitter and receiver (line of site +30 meters/100 ft.)
• Detection distance is adjustable from 3 – 30 cm (1 – 12 in.)
• SPDT relay output can be used for signaling/switching automatic doors and access control (3A @ 30VDC)
• Low power consumption providing long battery life*
• Selectable activation output between 1.5 seconds or “latching”, meaning activation “on”, activation “off”
• Receiver voltage input 12~30 VDC
• 912-R receiver is required for operation (choose “with receiver” option)
• Receiver Dimensions: 4.8 (H) x 1.96 (W) x 1.25 (D) in.

*Batteries not included
